Cobra Anchors  |  Our Item #: MORG7840713

Model Number: 492R - UPC : 058060018411

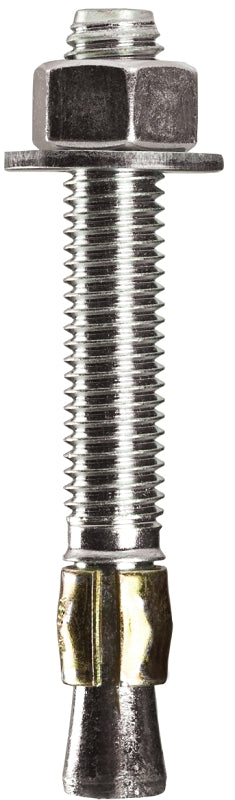

Cobra Anchors 492R Wedge Anchor, 1/4 in Dia, 3-1/4 in L, 449 lb, Steel, Plated

$9.61 $14.69
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • A taper shaped mandrel neck for a smoother expansion
  • A 360 deg parabolic clip for more contact thus stronger
  • Can be installed into bottomless hole
  • Cold formed for increased strength

Description
The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.
Unit: PK
UPC: 58060018411
Model Number: 492R

Additional Information

  • Diameter: 1/4 in
  • Drill Size: 1/4 in
  • Finish: Plated
  • Length: 3-1/4 in
  • Material: Steel
  • Minimum Embedment Depth: 2-3/4 in
  • Shear Strength: 1916 lb
  • Tensile Strength: 3898 lb
  • Thread Length: 2-1/4 in
  • Weight Capacity: 449 lb


Application: For architectural facades, ornamental fixtures, railings, satellite dishes and signs
