Eaton Corporation  |  Our Item #: MACE32159

Model Number: BR816L125FDP - UPC : 786676001434

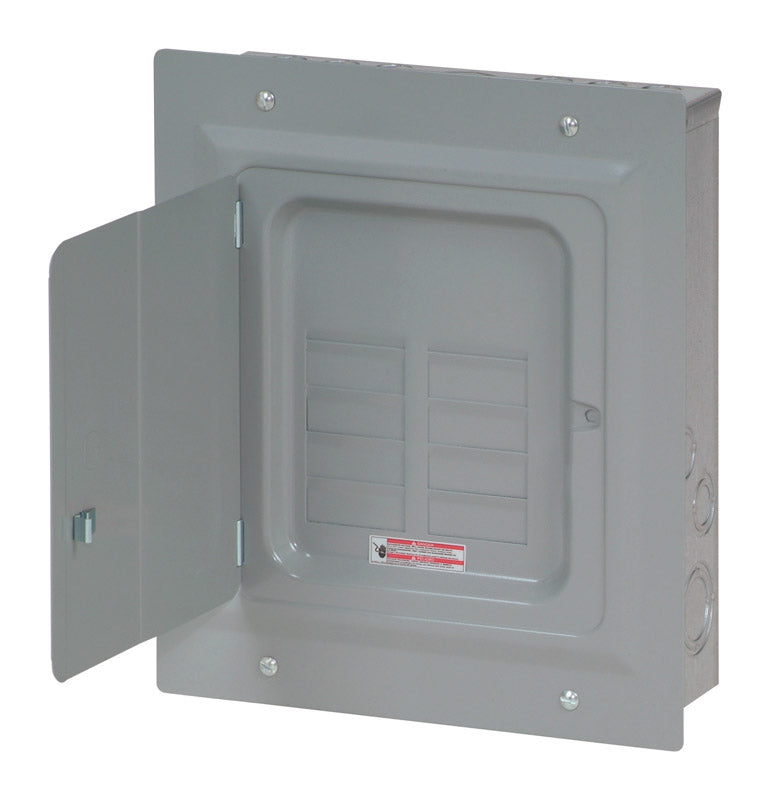

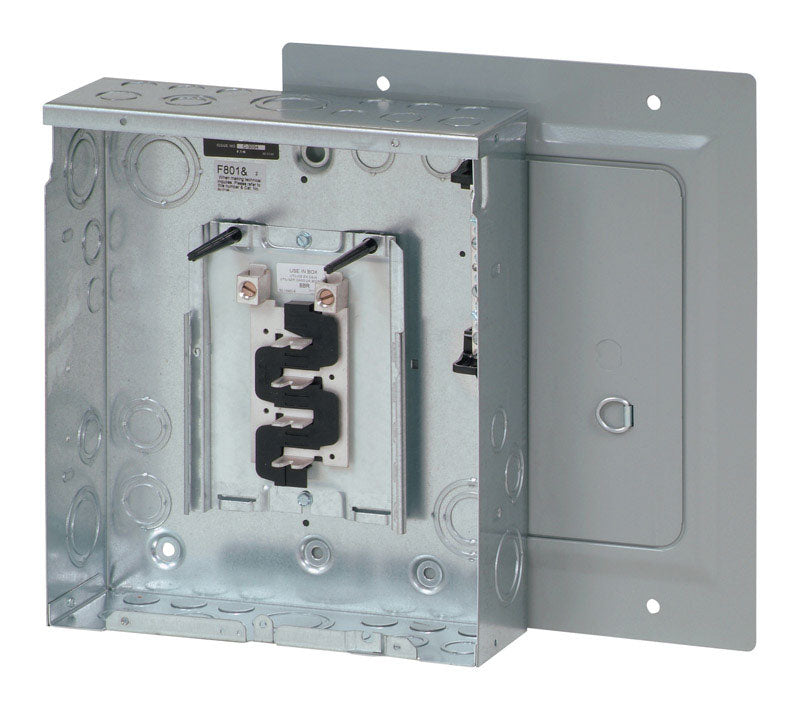

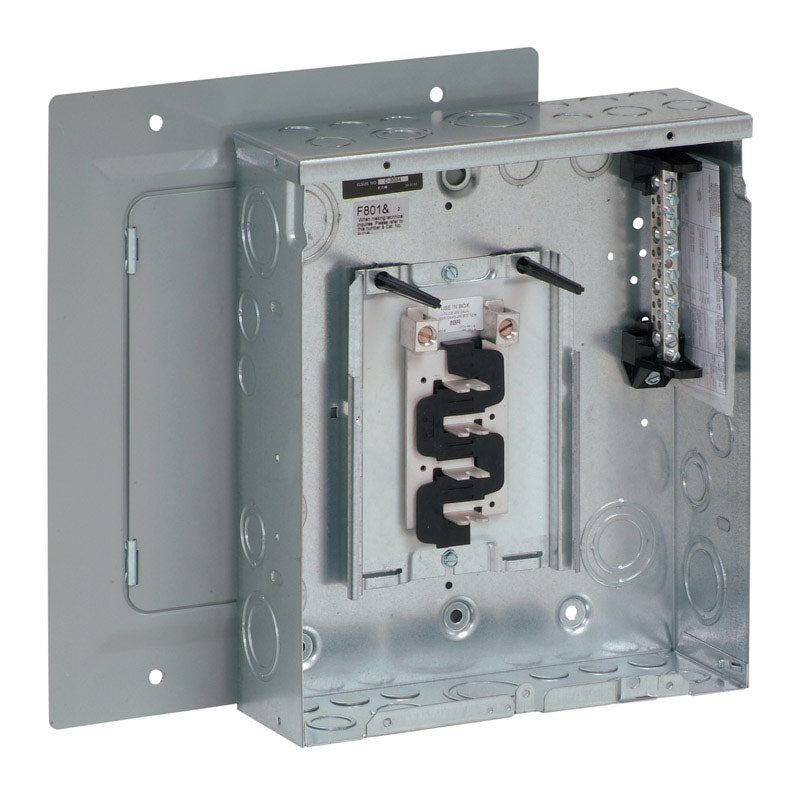

Eaton 125 amps 120/240 V 8 space 16 circuits Flush Mount Main Lug Load Center

$44.94 $44.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Eaton
  • Product Type: Main Lug Load Center
  • Amps: 125 ampere
  • Brand Name: Eaton
  • Breakers Included: No
  • Circuit Protection Type: Main Lug
  • Depth: 3.56 inch
  • Height: 13 inch
  • Maximum Number of Circuits: 16 circuits
  • Mounting Type: Flush Mount
  • Number of Spaces: 8 space
  • Packaging Type: Boxed
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 11 inch
  • Indoor or Outdoor: Indoor

    • Description
    Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR816L125FDP is a 125 amp main lug with 8 spaces and 16 circuits.
  • Ground bars mount to the left side of the enclosure
  • Uses type BR, BD, BQ, GFCB Eaton circuit breakers
  • Straight-in wiring saves labor and material
  • Full line of accessories available including surge protectors, ground bars, filler plates, etc
    •

    Additional Information
    Eaton Corporation

    Eaton 125 amps 120/240 V 8 space 16 circuits Flush Mount Main Lug Load Center

    $44.94 $44.99
    Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR816L125FDP is a 125 amp main lug with 8 spaces and 16 circuits.
  • Ground bars mount to the left side of the enclosure
  • Uses type BR, BD, BQ, GFCB Eaton circuit breakers
  • Straight-in wiring saves labor and material
  • Full line of accessories available including surge protectors, ground bars, filler plates, etc
